Two Head Oil Type Transformer Winding Machine For Two Same 500mm Height Coil

Name: Two Head Oil Type Transformer Winding Machine For Two Same 500mm Height Coil
Brand: Zhutang
Price: 1 USD

Brand Name : Zhutang

Model Number : ZPX500-2

Certification : Main parts with CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 30-35 days

Packaging Details : Seaworthy packing

Round wire diameter : 0.3-5.0mm

Max. Flat wire size : 5x12mm

Max. winding coil number : 2 pcs

Max. coil height : 500mm

Winding shaft size : 40x40x1200mm

Winding power : 7.5kw

Winding speed : 160rpm

Center height : 900mm

Contact Now

Two Head Oil Type Transformer Winding Machine For Two Same 500mm Height Coil

Description

Two Head Oil Type Transformer Winding Machine For Two Same 500mm Height Coil ZPX500-2, adopting automatic wire laying and tension technologies, is especially suitable for winding different specifications of coils. These coils can be used in transformers, reactors and other similar products. This kind of coil winding machine is provided with main winding motor, automatic wire laying unit, layer insulation unit, coil stand, pneumatic system, PLC based control system, and servo motors, etc. The winding machine can wind 2 same coils at once.

Two Head Oil Type Transformer Winding Machine For Two Same 500mm Height Coil

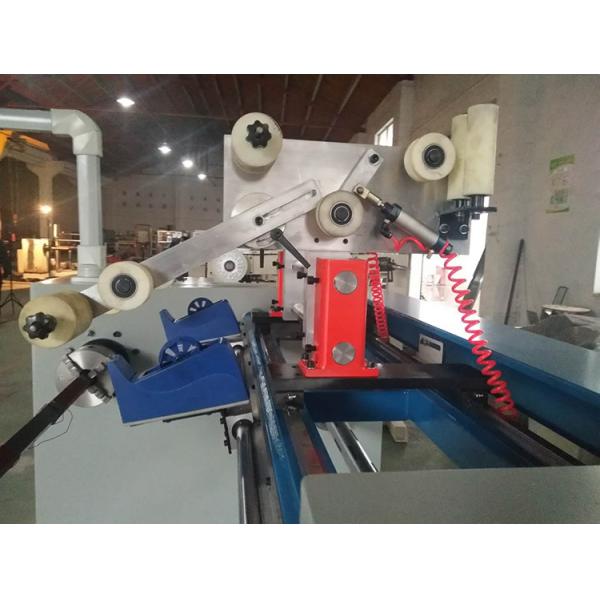

(Figure: Transformer coil winding machine ZPX500-2's wire laying unit)

Main Features

Strong pulling force
Precision wire laying
Slow starting
Smooth running
Easy to operate

Main Parameters

Center Height:	900mm
Max. Winding Coil Number:	2 pcs
Max. Each Coil Length:	500mm
Shaft Length:	1200mm
Feeding Shaft Number:	2(with pneumatic control tension)
Flat Wire Size:	5x12mm
Round Wire Diameter:	0.3-5.0mm
Max. Coil OD.:	850mm
Winding Speed:	0-160RPM
Speed Regulation:	Variable frequency and stepless speed regulation
Winding Power:	7.5KW
Automatic Wire Arrangement Function:	Diameter of wire adjustable, Min. step: 0.01mm
Counting Mode:	5-digit counting, turn number preset by segments, total turn number preset, reversible counting, and power off memory, etc.
Max. Turns Preset Number:	9999.9
Counting Turn Range:	0 - 9999.9
